A BMW 520d came into Evolve Automotive with a common but frequently misdiagnosed complaint, the AC was blowing but not cooling. The compressor was running, the fans were working, the system had refrigerant. On the surface, everything looked normal. But the cabin was not getting cold.
The owner had already been told elsewhere that the compressor needed replacement. Before agreeing to that, he brought the car to us for a second look. A proper diagnostic check told a different story, the compressor itself was fine. The fault was in the AC compressor control valve, a small component inside the compressor that regulates how hard the compressor works. Replace the valve, not the whole compressor, and the AC comes back.
Here is how the diagnosis was done and what the repair involved.
BMW Service at Evolve Automotive: BMW Service Centre — Evolve Automotive, Guindy Chennai |
+91 98849 88632 · Mon–Sat 10AM–7PM
What the Control Valve Does
The BMW 520d uses a variable displacement AC compressor. Unlike older fixed compressors that either run at full capacity or switch off, a variable displacement compressor adjusts how much refrigerant it pumps depending on how much cooling is needed. This makes the system more efficient, the compressor does not have to work at full load every time the AC is on.
The control valve is what tells the compressor how much to do. It is an electromechanical solenoid, a small valve with an electrical connector that sits inside the compressor body. The engine management system sends a signal to the valve, the valve adjusts the internal pressure inside the compressor, and the compressor changes its displacement accordingly.
When the control valve fails, the compressor loses the ability to adjust. In most failure cases, it defaults to minimum displacement, the compressor keeps spinning but barely pumps any refrigerant. The AC feels like it is on but there is almost no cooling. This is exactly what was happening on this 520d.
How It Was Diagnosed
Diagnostic Scan First
The first step was a full AC system scan using Autel MaxiSys. The scan checked the AC control module for fault codes, confirmed the compressor clutch engagement signal, and checked the control valve output signal. A fault code pointing to the compressor control valve signal was stored and the system had detected that the valve was not responding correctly to the commanded displacement signal.
This is the step that most workshops miss. Without reading the AC control module specifically, not just the engine module, the fault code does not show up. A generic scan that only reads engine codes will show nothing wrong, which is why the compressor ends up getting blamed when the real fault is a much smaller component.
Confirming Before Replacing
Before ordering the valve, the AC system pressures were checked with a manifold gauge set to confirm the refrigerant charge was correct and the high side pressure was within range. Low refrigerant or a blocked expansion valve can produce similar symptoms and these were ruled out before the valve was confirmed as the fault. The compressor body was also checked for any signs of oil contamination or internal noise under load, none found. The compressor internals were in good condition.
The Repair

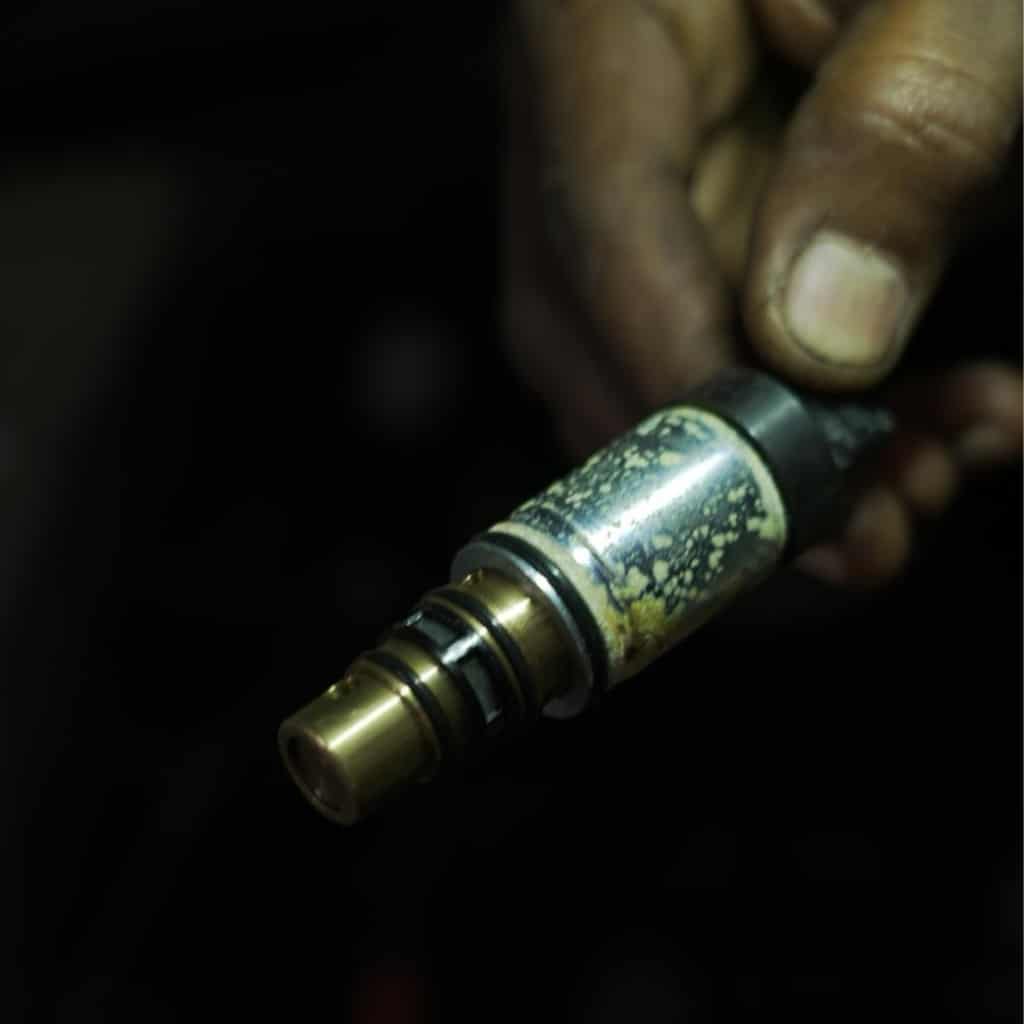

The control valve on the BMW 520d compressor is accessible without removing the compressor from the car. The valve unscrews from the compressor body after the electrical connector is disconnected. The old valve showed visible deterioration, the body was heavily corroded and the O-rings had broken down. In Chennai’s heat and humidity, these seals deteriorate faster than the European service life assumes.

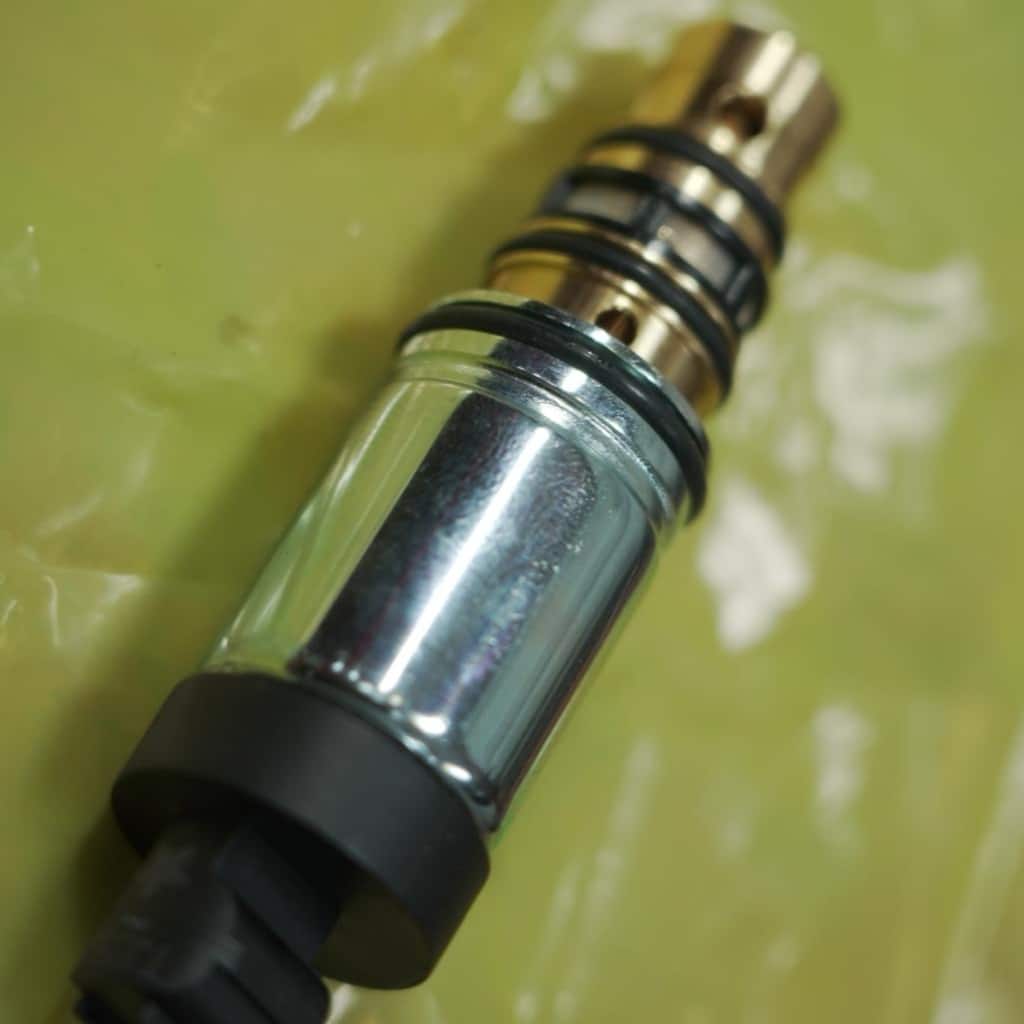

The new valve was fitted with fresh O-rings lubricated before installation to ensure a clean seal. The electrical connector was reconnected and the system run up to check the AC control module was now reading the valve correctly. Vent temperature was measured at the centre vents after the system stabilized, cooling confirmed within the normal range for ambient conditions.
The fault codes were cleared and a second scan run to confirm no codes returned. The owner was asked to run the AC through a full cycle before leaving, warm start, full cool down, then back to ambient to confirm consistent cooling across the cycle.
A BMW AC compressor that is not cooling does not always need a new compressor. The control valve is a fraction of the cost and the repair takes a few hours rather than a full day. The difference between the right diagnosis and the wrong one here is significant. Replacing a working compressor because the valve was not checked is the kind of unnecessary cost that a proper diagnostic scan prevents. |
Premium European Car Service: Premium Car Service Hub at Evolve Automotive |
Frequently Asked Questions
Q: Why is my BMW 520d AC running but not cooling?
The most common reason a BMW 520d AC runs but does not cool is a failed AC compressor control valve. The compressor is still spinning, the fan is working, and the refrigerant level is correct but the compressor is not pumping enough refrigerant through the system because the control valve has failed and defaulted to minimum displacement. Other possible causes include a low refrigerant charge, a blocked expansion valve, or a faulty AC pressure sensor. A proper diagnostic scan of the AC control module is the correct first step before any parts is replaced.
Q: How is an AC compressor control valve different from an AC compressor?
The AC compressor is the full assembly that pumps refrigerant around the AC circuit. The control valve is a small component inside the compressor that controls how hard the compressor works. On BMW variable displacement compressors, the control valve is serviceable separately, it can be unscrewed from the compressor body and replaced without removing or replacing the compressor itself. When the control valve fails but the compressor internals are in good condition, replacing the valve alone restores full AC function.
Q: Can a BMW AC control valve failure be confirmed without replacing parts?
Yes. A diagnostic scan of the AC control module will show fault codes related to the control valve signal if the valve has failed electrically. AC system pressure checks confirm whether the refrigerant charge is correct and whether the compressor is pumping at the right pressure. Together, these checks confirm the control valve as the fault before any replacement is done. At Evolve Automotive, we always diagnose and confirm before recommending a repair, particularly on AC jobs where the symptom can have multiple causes.
Q: How long does a BMW AC compressor control valve replacement take?
A BMW AC compressor control valve replacement typically takes three to four hours including the diagnostic scan before the repair, the valve replacement itself, and the post repair check of vent temperatures and fault codes. The valve is accessible without removing the compressor from the car on most BMW models, which keeps the job time reasonable. If the compressor does need to be removed for access on a specific variant, the time increases.
Q: Does the AC need to be recharged after a control valve replacement?
Not always. If the refrigerant charge was confirmed correct before the repair and the system was not opened, meaning the refrigerant circuit was not broken, recharging is not required. The control valve replacement on the BMW 520d can be done without opening the refrigerant circuit. The refrigerant stays in the system throughout. If the system pressure checks showed low refrigerant before the repair, a top-up would be done separately as part of the diagnosis.
