This Alpine White BMW X5 G05 M Sport came into Evolve Automotive with a knocking from the front suspension, noticeable over speed breakers and more pronounced when turning into a bump at low speed. The owner had already had the car checked elsewhere without a clear answer. We put it on the ramp and inspected the front suspension properly.
The fault was in the front lower control arm, the main link that connects the front wheel hub to the chassis at the bottom. The bushing at the chassis end had worn and the ball joint at the hub end had developed play. Both issues were in the same arm, so the correct fix was full arm replacement rather than trying to rebuild it in place.
Here is what the job involved and why the lower control arm on the G05 X5 matters more than it does on a smaller car.
BMW Service at Evolve Automotive: BMW Service Centre — Evolve Automotive, Guindy Chennai |
+91 98849 88632 · Mon–Sat 10AM–7PM
Why the Lower Control Arm Matters on the BMW X5
The lower control arm is one of the primary suspension links on any car, but on an SUV like the X5 G05, it carries more load than on a saloon. The X5 is a heavy car, the G05 xDrive variants weigh close to 2,200 kg. That weight passes through the suspension on every speed breaker, every pothole, and every corner. The lower control arm takes the brunt of it.
The G05 X5 uses a double-wishbone front suspension setup. The lower control arm has two connection points, a bushing at the subframe end that allows controlled movement front to back, and a ball joint at the wheel hub end that allows the wheel to steer and articulate. When either of these wears, the wheel is no longer held in a precise position. You feel it as a knock, a vague steering response, or both.
On Chennai roads where the X5 is going over speed breakers multiple times a day fully loaded, this wear accelerates faster than the European service schedule accounts for.
The Replacement — Parts and Process
Parts Used
The replacement lower control arm was sourced from TRW, one of the original equipment suppliers to BMW. TRW manufactures suspension components to the same specification as the genuine BMW part. Using an OE equivalent part from the original supplier is the correct approach for a safety-critical suspension component, it is not a compromise on quality.

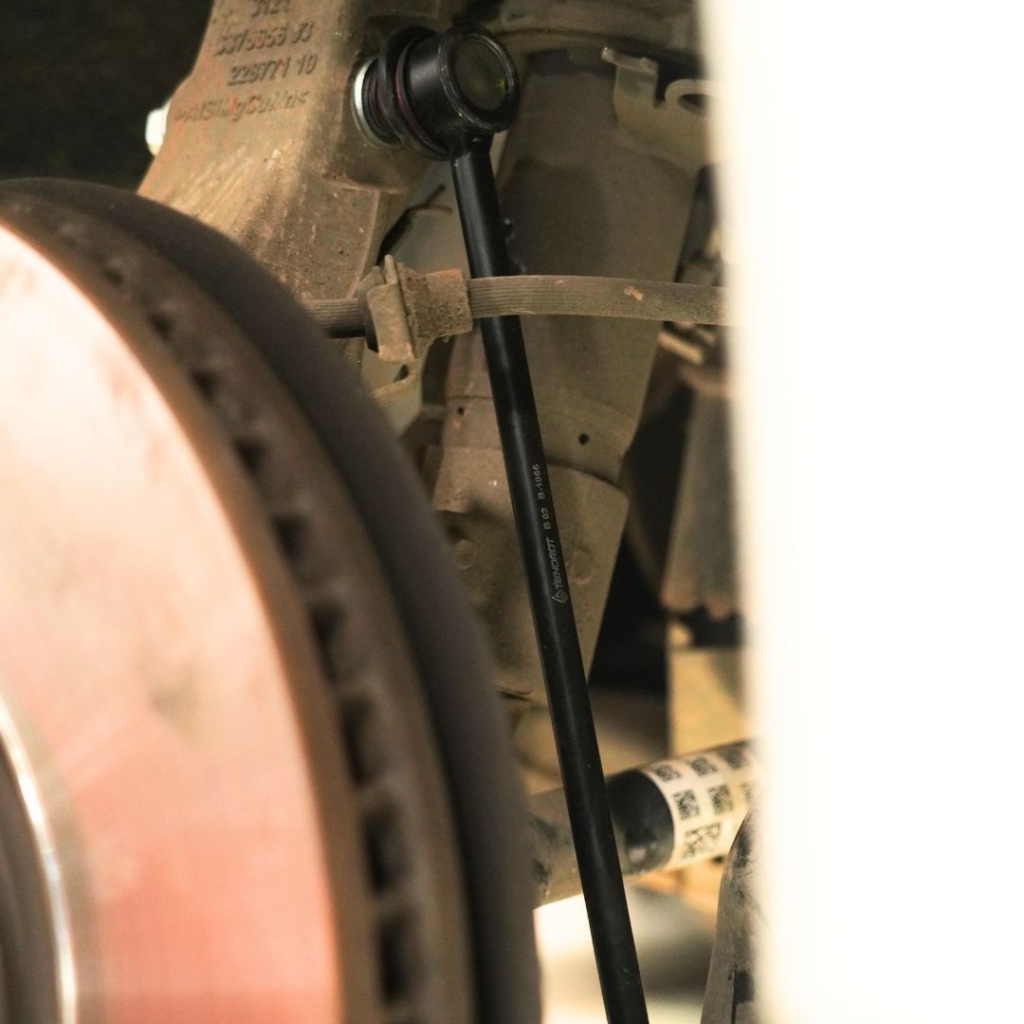

The stabiliser link on the same side was also inspected while the suspension was apart. It showed wear at the upper joint end. It was replaced at the same time using a TRW unit, sensible to do it while access is already there rather than bringing the car back in a few months for a separate visit.
Removal and Fitting

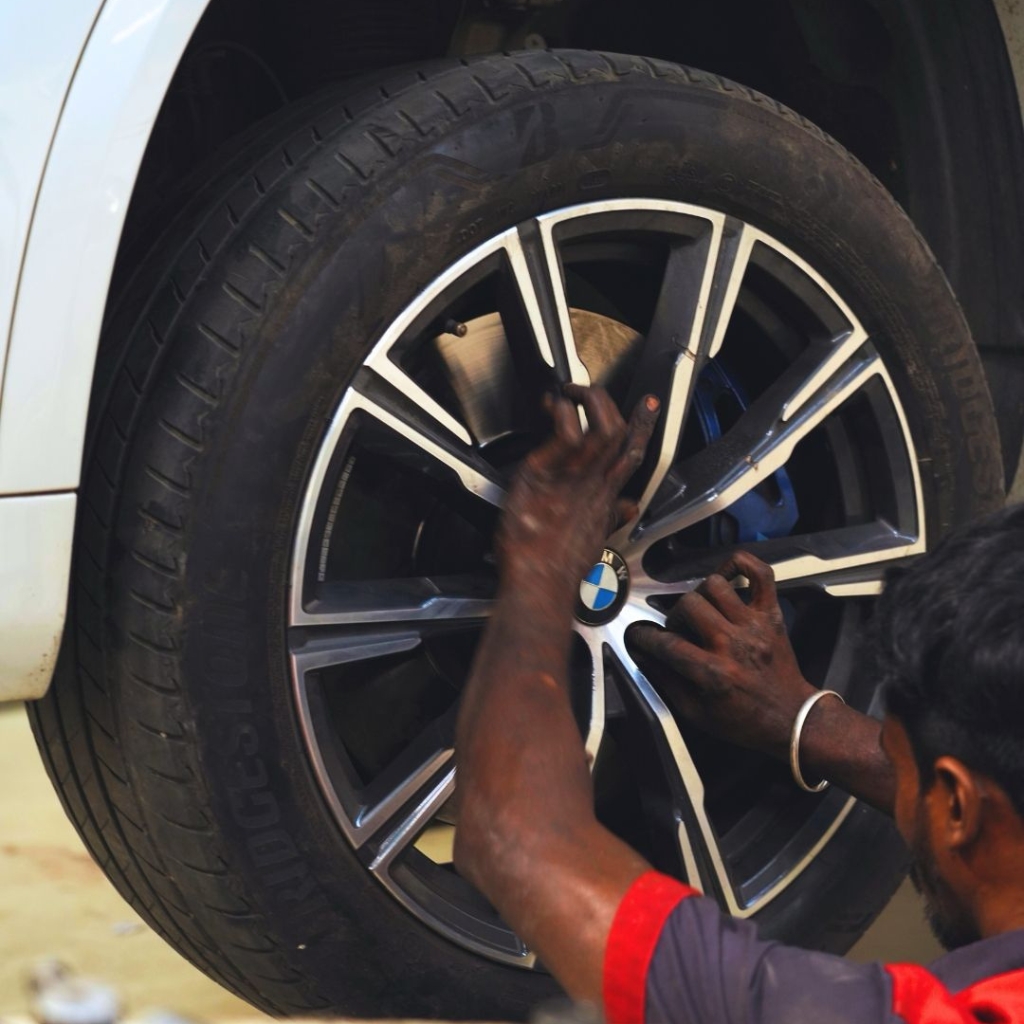

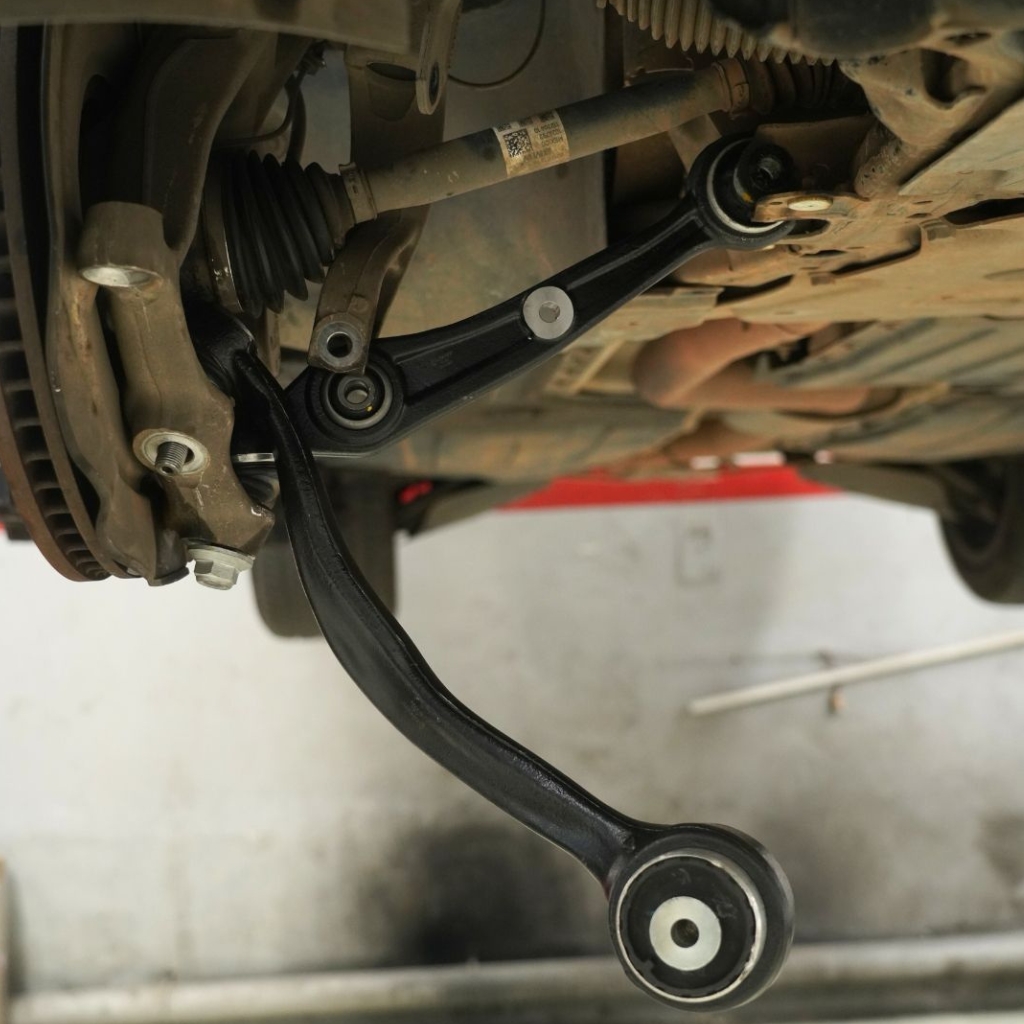

The front wheel was removed and the suspension unloaded on the ramp. The lower control arm was disconnected at the subframe bushing first, then the ball joint was separated from the hub. The arm came out cleanly, no damage to surrounding components.
The new arm was fitted in the same sequence in reverse. The subframe bolts and ball joint pinch bolt were torqued to specification, these are not components to be hand tightened and checked later. Final torque was applied with the suspension at ride height, not with the wheel hanging, this is the correct procedure for any suspension bushing so the rubber sets in its natural position and does not wear prematurely
Wheel Alignment After Suspension Work

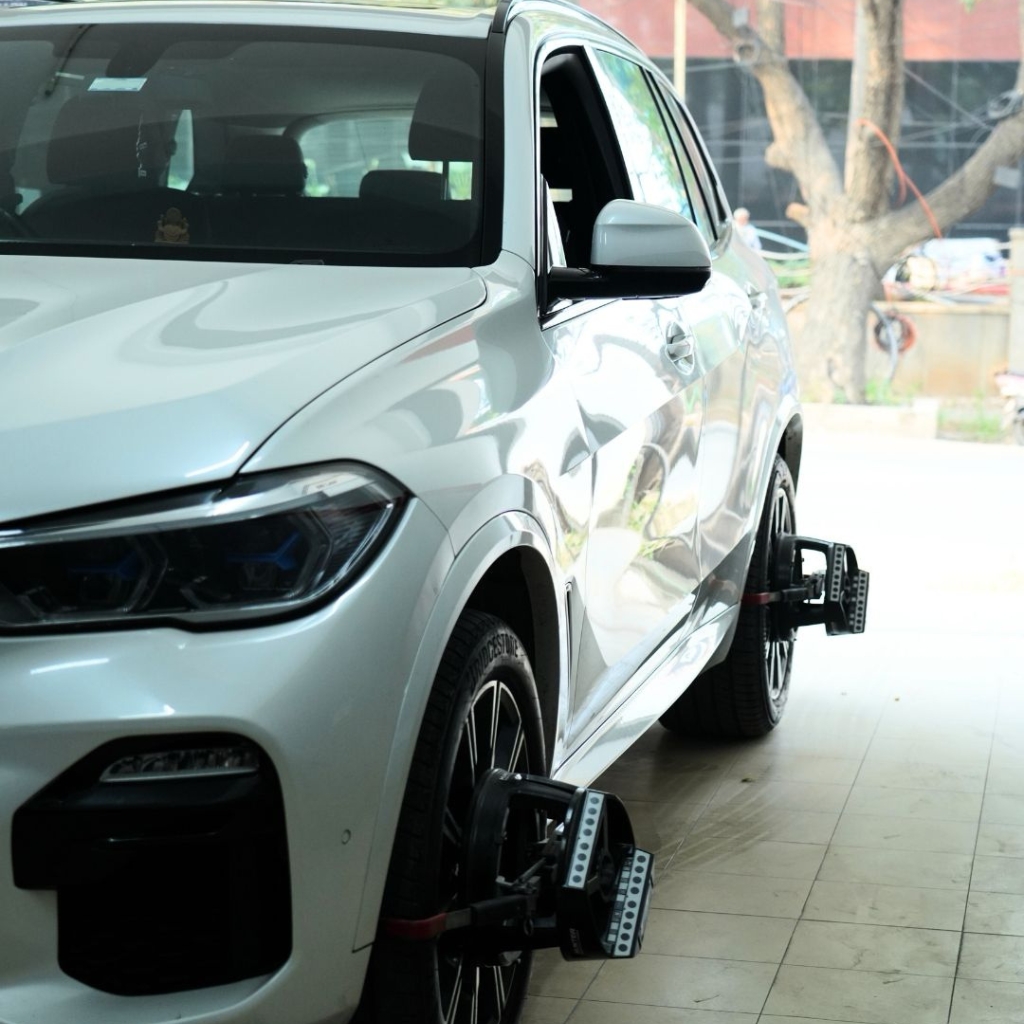

Once the arm was fitted, the X5 went on the alignment rig for a full four-wheel alignment. Replacing a lower control arm changes the front geometry, caster and camber are both affected. Driving a car with new suspension components but without an alignment check means the new parts are working against an incorrect geometry from the start.
The alignment was set to BMW specification for the G05 xDrive variant. Both front and rear were checked, the rear was within limits and did not need adjustment. Front caster and camber were corrected to spec before the car was signed off.
A knock from the front suspension on a BMW X5 is worth investigating early. A worn lower control arm does not just create noise, it means the wheel is not being held in a precise position. Over time, this affects tyre wear, steering feel, and braking stability. On a car as heavy as the X5, a loose front suspension component has more consequences than on a lighter car. The earlier it is caught, the simpler and less expensive the fix. |
Premium European Car Service: Premium Car Service Hub at Evolve Automotive |
Frequently Asked Questions
Q: What are the signs of a worn lower control arm on a BMW X5?
The most common sign is a knocking or clunking from the front suspension, particularly when going over speed breakers or turning while going over a bump. You might also notice vagueness in the steering, the car feels slightly less precise than it used to, or wanders slightly on a straight road. Uneven front tyre wear, especially on the inner or outer edge of one tyre, is another indicator. Any one of these on a G05 X5 with higher mileage is worth having the front suspension inspected on the ramp.
Q: Can the bushing and ball joint on a BMW X5 lower control arm be replaced separately?
Technically, the bushing can be pressed out and a new one pressed in, and the ball joint can be separated and replaced on some designs. In practice on the G05 X5, replacing the full lower control arm is the more reliable approach when both the bushing and ball joint show wear. The arm comes as a complete assembly with new bushing and ball joint already fitted to the correct specification. It is quicker, cleaner, and the end result is more consistent than rebuilding the old arm in situ.
Q: Does a lower control arm replacement require wheel alignment afterwards?
Yes, always. Replacing a front lower control arm changes the front suspension geometry, caster angle and camber are both affected. If you drive the car without doing an alignment after this job, the new arm is working against incorrect geometry from the first kilometre. This accelerates bushing wear and causes uneven tyre wear. Four-wheel alignment is always the final step after any front suspension component replacement.
Q: What is the difference between OE and genuine BMW parts for suspension work?
Genuine BMW parts are manufactured by BMW’s supplier network and sold through the BMW dealer channel with BMW branding. OE equivalent parts are manufactured by the same suppliers, in this case TRW, to the same specification, sold through the independent parts channel without the BMW badge. The component is the same. The difference is in the packaging and the channel margin. For safety critical suspension components, using an OE equivalent part from the original manufacturer is the correct approach.
Q: How long does a BMW X5 lower control arm replacement take?
A BMW X5 G05 lower control arm replacement including wheel alignment takes most of a working day when done correctly. The suspension work itself takes a few hours, wheel off, arm out, new arm in, torqued to spec at ride height. The alignment after adds time but is not optional. If the stabiliser link is being replaced at the same time, which makes sense while access is already there that adds a short additional time to the job.
