When the suspension arms on a Mercedes E350d start to go, you feel it. The steering feels slightly vague. The front end does not respond the way it used to. Maybe a knock over certain bumps, maybe a pull under braking. Nothing dramatic, just a sense that the car is not quite right.
This white E350d W213 came in with exactly that kind of complaint. Inspection confirmed worn upper and lower arms on the front suspension. Both were replaced, and a full wheel alignment was done afterwards to bring the geometry back to where it should be. Here is the full picture of what was done.
|
Mercedes-Benz Service and Repairs in Chennai — Evolve Automotive |
+91 98849 88632 · Mon–Sat 10AM–7PM
What the Upper and Lower Arms Do
The front suspension on the E-Class uses a multi-link setup. The upper arm and lower arm are the two main links that connect the wheel to the car’s body structure. They control the angle and position of the wheel as the suspension moves up and down.
Each arm has rubber bushings at the body end and a ball joint at the wheel end. The bushings absorb small vibrations and allow controlled movement. The ball joint lets the wheel pivot for steering. When either of these wears out, the wheel starts to move slightly outside its designed path. That is when you feel it in the steering and in how the car handles.
On this E350d, both the upper and lower arm bushings had worn. The arms were replaced as a set. Replacing one and leaving the other worn does not make sense, because the worn one will show up in the alignment and handling immediately.
The Replacement Job

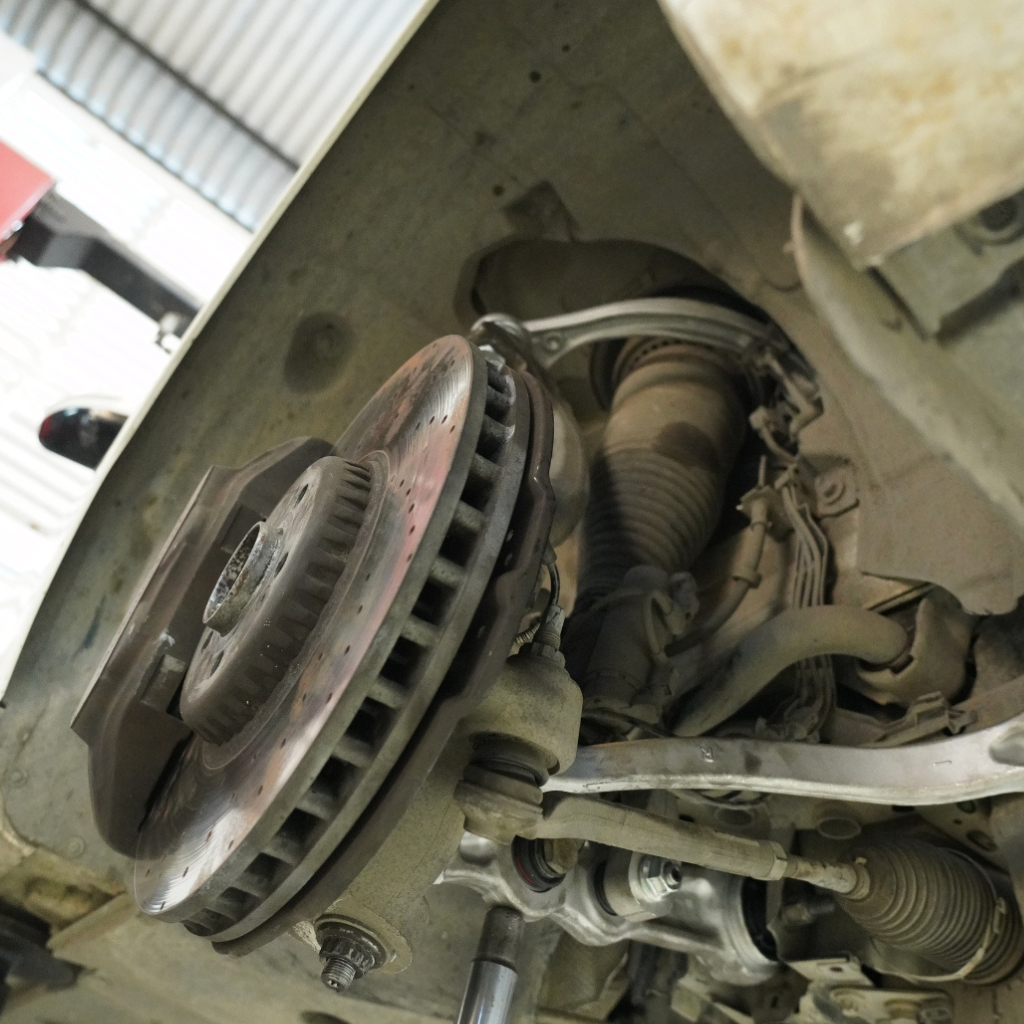

The car was raised and the front wheels removed to give full access to the suspension. The photos from this job show the suspension exposed with the brake disc visible and the arms in clear view from underneath.

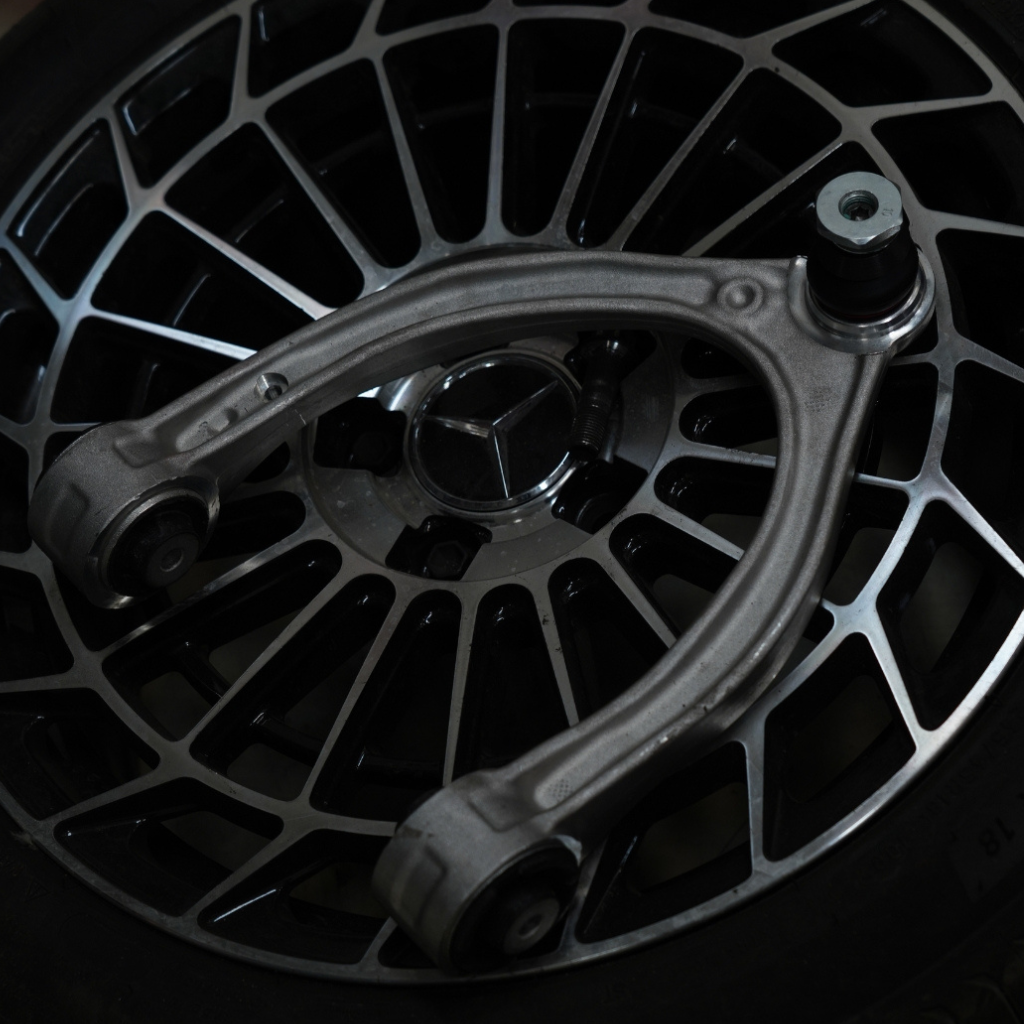

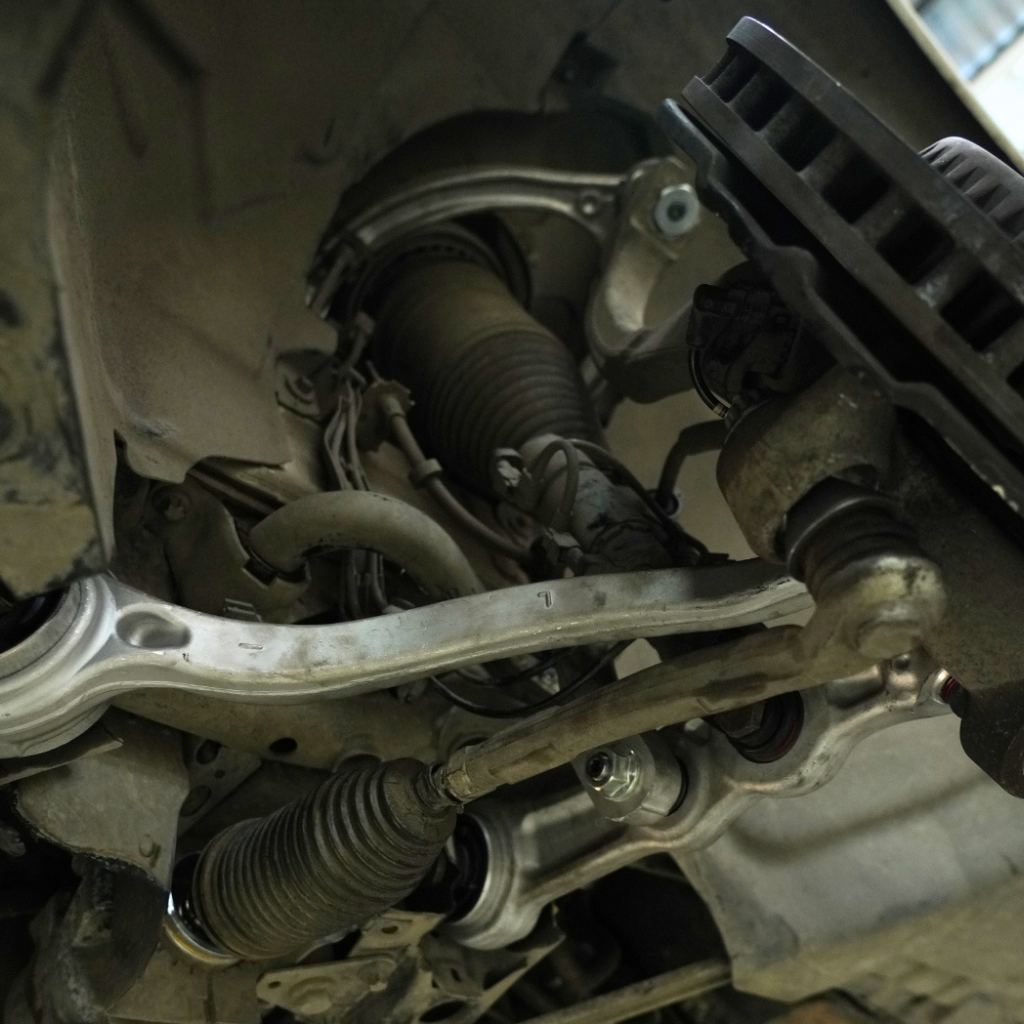

The old upper and lower arms were unbolted from their mounting points and removed. The new arms, fresh aluminium castings with new bushings and ball joints were fitted in their place. The new upper arm is visible in the photo, laid against the Mercedes alloy wheel before fitting. The photo from underneath after fitting shows both new arms in position, clean against the rest of the suspension.
Everything was torqued to the correct specification. Suspension fasteners on the E-Class have specific torque values that matter. Too loose and the arm can move. Too tight on a rubber bushing and you pre-stress the bush before it is even in use.
Wheel Alignment After Arm Replacement
Any suspension work that involves replacing arms must be followed by a full wheel alignment. The arms directly control where the wheels sit. New arms, even fitted correctly, will change the geometry slightly from where it was before.

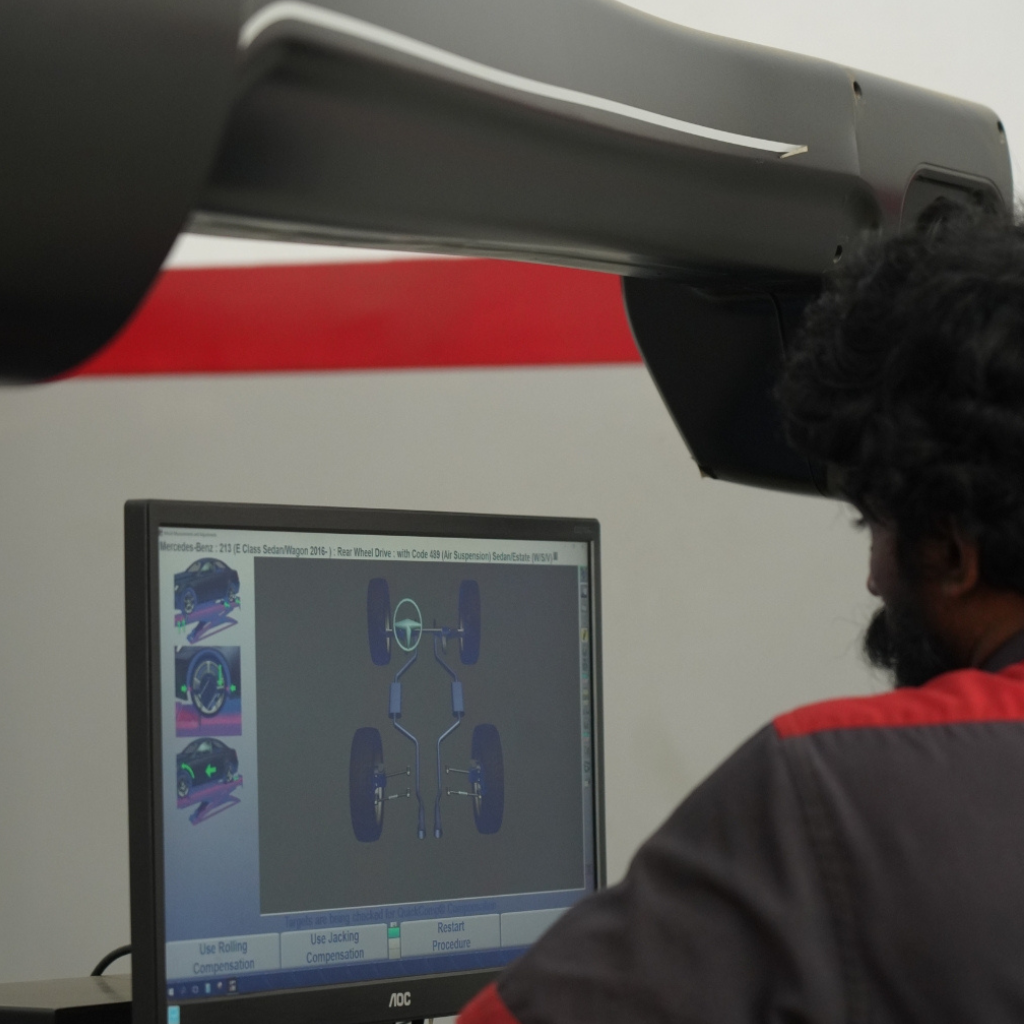

The alignment was done on our Hunter alignment machine. The screen in the job photo shows the W213 E-Class geometry diagram with all four wheels being measured. The technician works through each measurement, adjusting toe, camber and caster until every value is within the manufacturer’s specified range.
On the E350d, getting the alignment right is not just about tyre wear. The E-Class is a car with a very specific handling character. When the geometry is correct, the steering weight and response feel exactly as they should. When it is off, even slightly, the car tells you. After this job, the geometry was back to factory spec and the car drove the way it is supposed to.
|
Worn suspension arms change how the car feels before any warning light comes on. Vague steering, a knock over bumps, a pull in one direction. These are the signs. New arms and a correct alignment bring everything back to how the E-Class was designed to ride and handle. |
|
European Premium Car Specialist Workshop — Evolve Automotive |
FAQ: Mercedes E350d Suspension Arm Replacement in Chennai
Q: How do I know if my Mercedes E-Class suspension arms need replacing?
The most common signs are a knocking or clunking sound from the front suspension over bumps or speed breakers, steering that feels vague or less precise than it used to, uneven tyre wear on the front wheels, or a pull to one side when braking. Any of these on their own could have other causes, but in combination they often point to worn suspension arms. The only way to confirm is to put the car on a lift and inspect the arms and bushings directly.
Q: Do both upper and lower arms need replacing at the same time?
Not always, but often yes. On the E350d, the upper and lower arms work together as part of the same suspension geometry. If one has worn to the point of needing replacement, the other is usually at a similar age. Replacing one and leaving the other means the worn arm continues to affect the alignment and handling. On this car, both were worn and both were replaced together.
Q: Why must wheel alignment be done after suspension arm replacement?
The suspension arms control where the wheels sit relative to the car body. When you replace them, the geometry changes, even if only slightly. Driving with incorrect geometry after an arm replacement will wear the new tyres unevenly and affect how the car handles. Alignment after every suspension repair is not optional. It is part of the job.
Q: Can Chennai roads cause suspension arm wear?
Yes, significantly. Speed breakers, particularly the abrupt flat-topped ones in residential areas, deliver hard vertical impacts to the suspension repeatedly. Over years of this, the rubber bushings in the suspension arms harden, crack and lose their ability to absorb movement properly. Chennai road conditions accelerate bushing wear compared to the smoother roads the suspension schedule assumes.
Q: How long does upper and lower arm replacement take on a Mercedes E-Class?
The job typically takes a full working day. The suspension needs to be fully disassembled to access both arms, the new arms need to be fitted and torqued correctly, and a full four-wheel alignment needs to be completed afterwards. It is not a job to rush. The alignment at the end is as important as the arm fitment.
Q: Is it safe to drive a Mercedes E-Class with worn suspension arms?
It is not advisable to delay once the symptoms appear. Worn suspension arms reduce the precision of the steering and can affect how the car responds in an emergency situation. A ball joint that has worn beyond its limit can fail, which causes a sudden loss of wheel control. Once you notice the signs, get it inspected. Catching it at the worn stage is far better than leaving it until something fails.
|
